67 13 001 Replacing drive unit for electrically operated left or right exterior mirror

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS for rear-view mirror

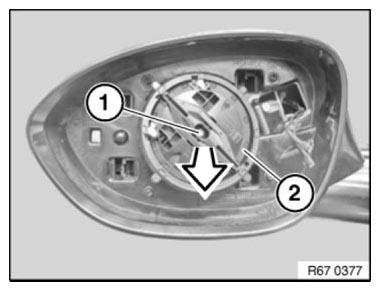

Release screw (1).

Remove drive for electrically operated exterior mirror (2) in direction of arrow from mirror housing (3).

Fig 1: Removing Electrically Operated Exterior Mirror Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit drive for electrically operated exterior mirror (1) so that pin housing (2) engages exactly in plug housing (3) and locators (4) slide into guides (5).

Fig 2: Identifying Electrically Operated Door Mirror, Pin Housing, Plug Housing And Locators

Courtesy of BMW OF NORTH AMERICA, INC.
