67 11 610 Removing and installing/replacing servodrive in storage compartment

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE .

Unlock plug socket (1) and feed out.

Release screws (3).

Remove servodrive (2).

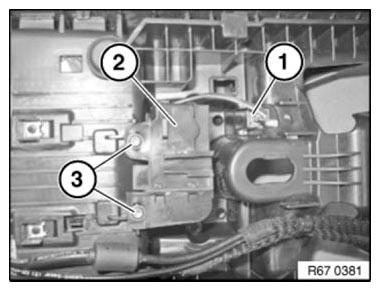

Fig 1: Identifying Servo Drive With Plug Socket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
