31 33 095 Measure vehicle ride height, front axle

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Determining actual ride height (A):

To do so, attach tape measure to rim flange (2) and measure to wheel arch lower edge or engine compartment lid lower edge (1).

Fig 1: Identifying Actual Ride Height From Lower Edge Of Wheel Arch To Rim Flange

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If engine compartment lid is removed or damaged, use special tool 32 0 001.

Fitting special tool 32 0 001:

Remove rubber plug next to spring strut dome.

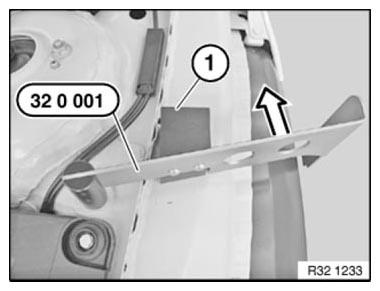

Fasten special tool 32 0 001 in bore hole and turn in opposite direction to direction of travel (see arrow) up to stop (1).

Fig 2: Turning Special Tool (32 0 001)

Courtesy of BMW OF NORTH AMERICA, INC.

Determining actual ride height (A):

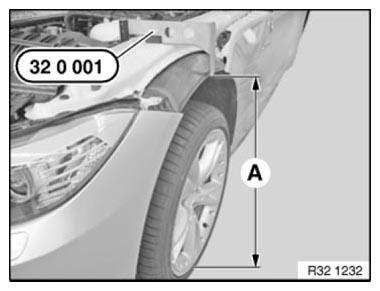

Attach tape measure to rim flange at bottom middle and measure to lower edge of special tool 32 0 001.

Fig 3: Identifying Actual Ride Height
