51 71 371 Removing and installing/replacing tension strut on left or right spring strut dome
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Vehicles must not be driven without tension struts.
Driving without tension struts may damage the vehicle body.
Tension struts can be secured with screws or nuts.
Screws must be tightened to specified torque and then tightened down with special tool 00 9 120.
Driving without tension struts may damage the vehicle body.
Tension struts can be secured with screws or nuts.
Screws must be tightened to specified torque and then tightened down with special tool 00 9 120.

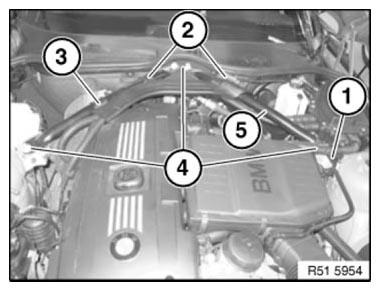

Release screw (1).
Lift out expanding rivets (2).
Remove cable holder (3).
Release screws (4).
Tightening torque 51 71 4AZ .
Installation:
Replace screws (4), tighten to specified torque and then to angle of rotation.
Remove tension strut (5).
