31.... Front axle overview

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

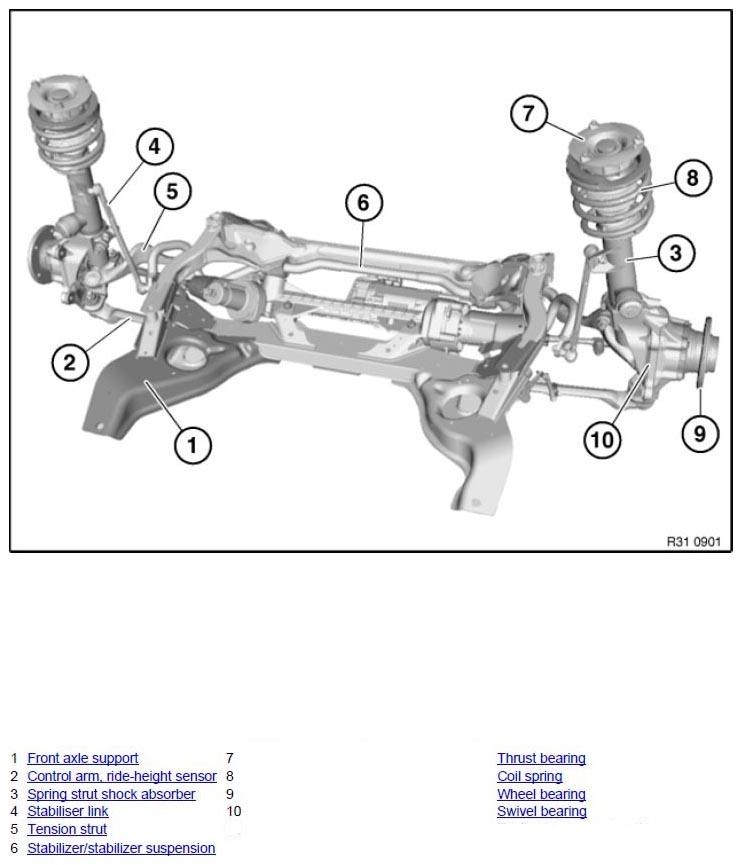

Fig 1: Overview Of Front Axle

Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions and general information

Front axle support
Control arm, ride-height sensor
Spring strut shock absorber
Thrust bearing
Stabilizer link
Tension strut
Stabilizer/stabilizer suspension
Coil spring
Wheel bearing
Swivel bearing
Testing/adjustment work
