51 37 171 Replacing rear left or right side window
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Power window unit has no anti-trapping mechanism.
Necessary preliminary tasks
- Remove REAR POWER WINDOW UNIT

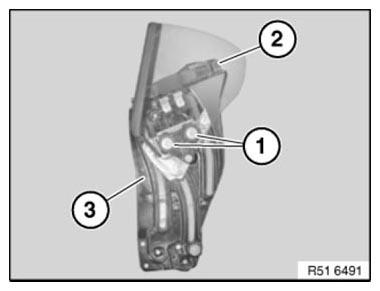

Release screws (1).
Tightening torque 51 37 2AZ .
Feed side window glass (2) out of power window unit (3).
Installation:
Position screws (1) centrally in window bore holes.
Check function.
Adjust REAR DOOR WINDOW .
