51 37 003 Replacing rear left or right power window unit

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR POWER WINDOW UNIT
Remove FLAT MOTOR FOR REAR POWER WINDOW UNIT

Release screws (1).

Tightening torque 51 37 2AZ .

Remove side window glass (2) from power window unit (3).

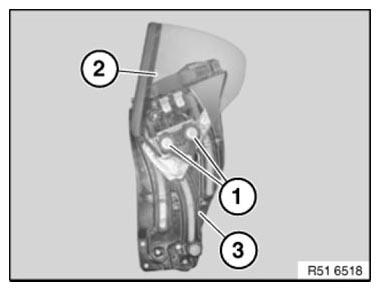

Fig 1: Identifying Side Window Glass Of Power Window Unit With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initial adjustment of pretension:

Attach adjusting screw (1) until flush on outside.

Check function.

Adjust REAR SIDE WINDOW .

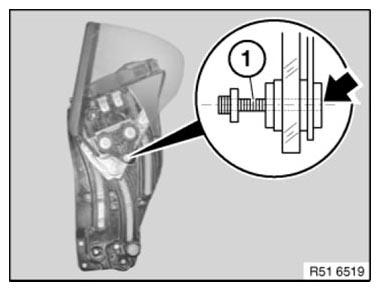

Fig 2: Identifying Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.
