51 32 170 Removing and installing/replacing door window glass, front left or right

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

WARNING: Risk of injury!

Carry out work on the power window unit only when the power window motor is de-energized.

Door window glass (1) must be opened to dimension (A).

A= approx. 110 mm

Fig 1: Identifying Door Window Glass Opening Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 21 16AZ .

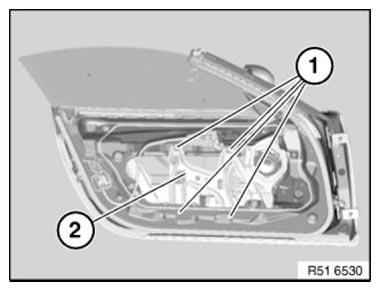

Remove adapter (2).

Fig 2: Identifying Adapter With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 21 13AZ .

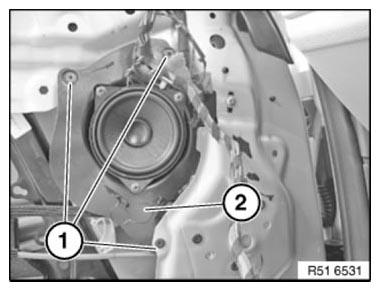

Remove H-strut (2).

Fig 3: Identifying H-Strut With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Power window unit is shown removed.

Release screws (1).

Tightening torque 51 32 2AZ .

Remove door window glass (2).

Installation:

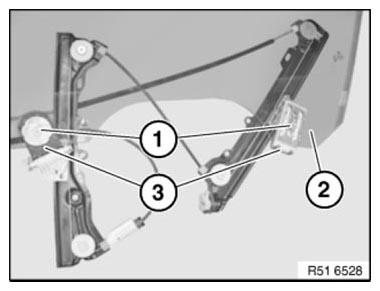

Insert door window glass (2) in clamping plates (3).

ADJUST DOOR WINDOW GLASS .

Check function.

Fig 4: Identifying Door Window Glass And Clamping Plates With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing door window glass

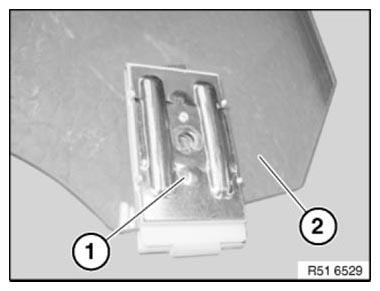

Remove clamping plate (1) from door window glass (2).

Fig 5: Identifying Clamping Plate Of Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
