51 24 100 Removing and installing/replacing rear lid lock (upper section)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove PANEL FOR REAR LID

Release screws (1).

Tightening torque 51 24 12AZ .

Release screw (2).

Tightening torque 51 24 13AZ .

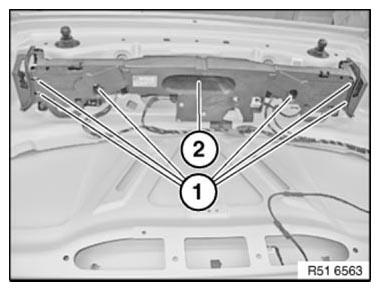

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unfasten screws (2).

Remove rear lid lock upper section (3).

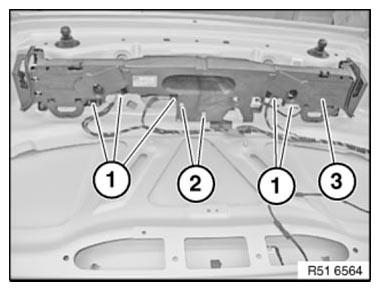

Fig 2: Identifying Rear Lid Lock Upper Section With Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

US version only:

Disengage Bowden cable (1) for emergency release mechanism.

Remove rear lid lock (2).

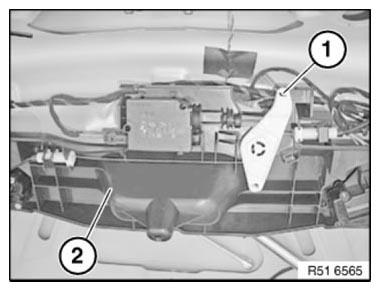

Fig 3: Identifying Rear Lid Lock And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.
