51 23 211 Removing and installing/replacing pull cable for hood/bonnet locks at front
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CROSS-MEMBER UPPER SECTION
- Remove hood/bonnet locks . See 5123110 REMOVING AND INSTALLING/REPLACING LEFT BONNET LOCK or 5123100 REMOVING AND INSTALLING/REPLACING RIGHT ENGINE HOOD/BONNET LOCK

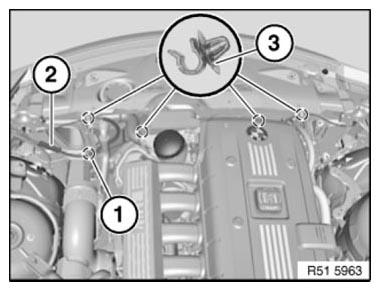

Lever coupler (2) out of front panel, open and lever out Bowden cable.
Release Bowden cable (1) from holder (3).
Remove Bowden cable (1).
