51 21 233 Removing and installing/replacing Bowden cable for outer door handle on left or right front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CARRIER FOR OUTER DOOR HANDLE

NOTE: For a better overview, door lock and outer door handle are shown removed.

Remove Bowden cable (1) from outer door handle (2) and door lock (3).

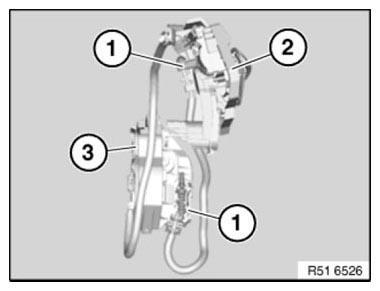

Fig 1: Identifying Bowden Cables, Outer Door Handle And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.
