51 46 072 Removing and installing/replacing lower partition panel

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Clamp off BATTERY LEAD FROM NEGATIVE TERMINAL
Remove CENTRE CONSOLE .
Remove UPPER PARTITION TRIM PANEL
Remove REAR SIDE TRIM PANEL (BOTTOM)

NOTE: Both seats are shown removed for purposes of clarity.

Professional HiFi system only:

Release mid-range speaker screws (2).

Unlock plug connection for mid-range speaker and disconnect.

Remove mid-range speaker.

Fig 1: Identifying Mid-Range Speaker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 46 7AZ .

Remove clips (2).

Raise protective caps for storage net holder and release screws (3).

Tightening torque 51 46 7AZ .

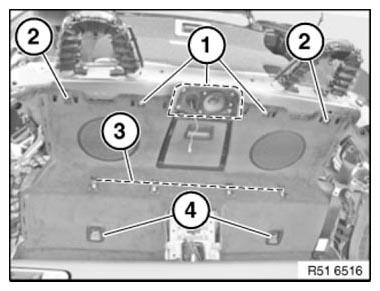

Fig 2: Identifying Screws And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release partition panel (1) at catches (2). Disconnect necessary plug connections.

Remove partition panel (1).

Replacement

Modify covers or lashing eyes (4).

Professional HiFi system only:

Modify speaker covers of bass speaker on left and right.

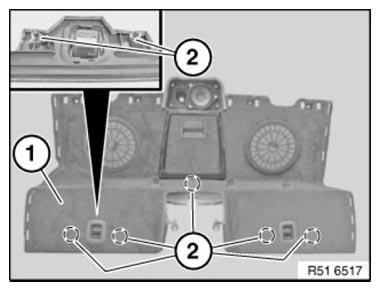

Fig 3: Identifying Partition Panel With Catches

Courtesy of BMW OF NORTH AMERICA, INC.
