51 11 770 Removing and installing/replacing left or right deformation element for front bumper

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Disconnect BATTERY NEGATIVE TERMINAL
Remove CARRIER for bumper trim at front
Remove HEADLIGHT

Release screws (1).

Tightening torque 51 11 2AZ .

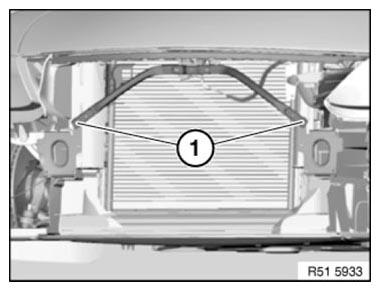

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove expander rivets (1).

Remove and replace expander rivets (2).

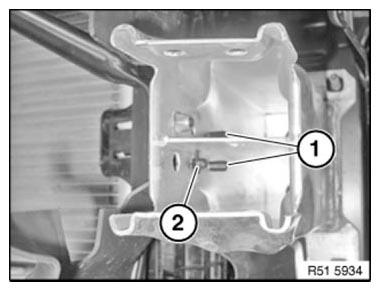

Fig 2: Identifying Expander Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 51 11 3AZ .

Drill out rivets (2) and do not replace any more.

Remove deformation element (3) towards front.

IMPORTANT: After assembly: Adjust headlight.

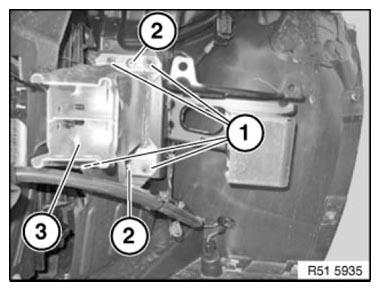

Fig 3: Identifying Deformation Element With Nut And Rivets
