36 11 131 Removing and installing/replacing front right RDC trigger transmitter

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unclip line (1) from washer fluid reservoir (2).

Unlock washer fluid reservoir (2) (3) and swing out.

Disconnect plug connection of RDC transmitter.

Fig 1: Removing Line From Washer Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Installation:

Tightening torque 36 11 3AZ .

Remove RDC transmitter (2).

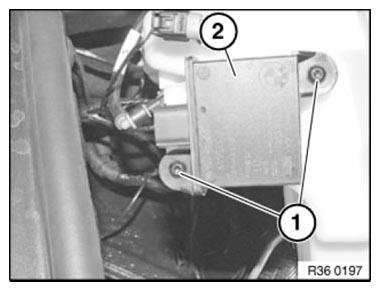

Fig 2: Identifying RDC Transmitter With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
