36 11 130 Removing and installing/replacing front left RDC trigger transmitter

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove front left WHEEL ARCH PANEL .

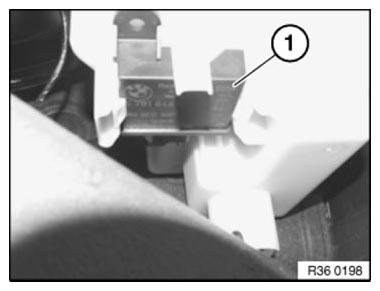

Unclip RDC transmitter (1).

Fig 1: Identifying RDC Transmitter

Courtesy of BMW OF NORTH AMERICA, INC.

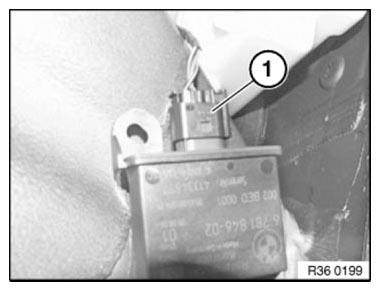

Disconnect plug connection (1).

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
