36 11 123 Removing and installing/replacing an RDC trigger transmitter (rear)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Release rear WHEEL ARCH PANEL

Disconnect plug connection (1).

Press catch (2) together and swing out RDC transmitter (3).

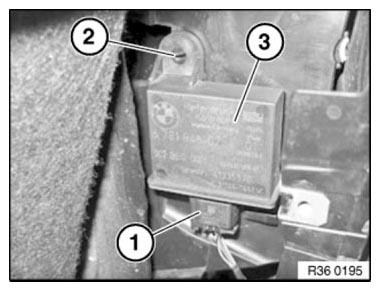

Fig 1: Identifying Plug Connection, Catch And RDC Transmitter

Courtesy of BMW OF NORTH AMERICA, INC.
