36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit (LOW COST): Notes

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).

Loosen the lower part of the bumper panel (1) and raise slightly.

Disconnect plug connection (2).

Push the retaining tabs (3) apart.

Pull the RDC control unit out.

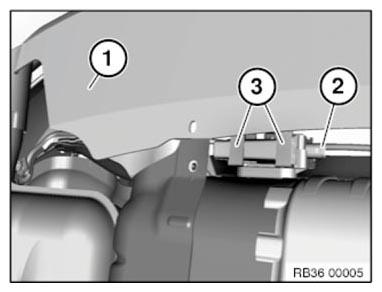

Fig 1: Identifying Plug Connection, Retaining Tabs And RDC Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
