64 53 521 Replacing safety pressure switch
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions See 6450... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A or 6450... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R134A handling R 134a refrigerant.
Avoid contact with refrigerant and refrigerant oil.
Follow SAFETY INSTRUCTIONS for handling refrigerant oil.
Refrigerant circuit is under high pressure!
Follow safety instructions See 6450... INSTRUCTIONS FOR HANDLING REFRIGERANT R 134A or 6450... SAFETY INSTRUCTIONS FOR HANDLING REFRIGERANT R134A handling R 134a refrigerant.
Avoid contact with refrigerant and refrigerant oil.
Follow SAFETY INSTRUCTIONS for handling refrigerant oil.
IMPORTANT:
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
If A/C system is opened for more than 24 hours: Replace DESICCANT INSERT FOR A/C SYSTEM .
Restart engine only when A/C system has been correctly filled.
Follow INSTRUCTIONS for opening and replacing parts in refrigerant circuit.
If A/C system is opened for more than 24 hours: Replace DESICCANT INSERT FOR A/C SYSTEM .
Necessary preliminary tasks:
- DRAWING OFF, EVACUATING AND FILLING THE A/C SYSTEM are not included in the time value given for this work operation

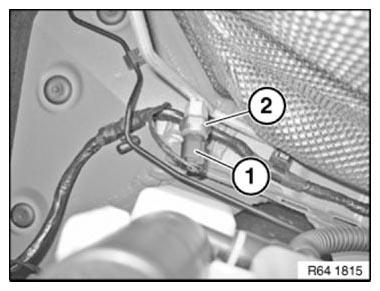

Disconnect plug connection (1).
Release safety pressure switch (2).
Installation:
Tightening torque 64 53 14AZ .
Replace sealing ring.
After installation
