64 11 992 Removing and installing or replacing solar sensor

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

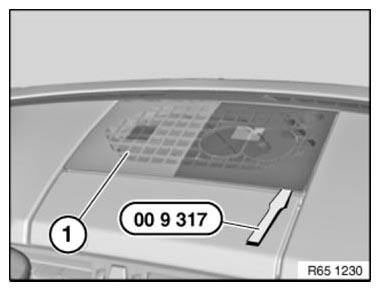

Unclip trim (1) with special tool from catches and remove towards top.

Fig 1: Opening Trim With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on speaker trim (2) must be correctly seated on associated lugs and must not be damaged.

Fig 2: Identifying Retainers On Speaker Trim

Courtesy of BMW OF NORTH AMERICA, INC.

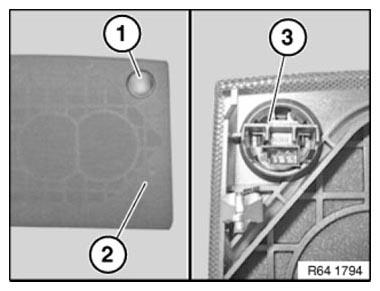

Unclip cover (1).

Remove speaker trim (2).

Unclip solar sensor (3) downwards from speaker trim (2).

Installation:

Retaining lugs on cover (1) and solar sensor (3) must not be damaged.

Fig 3: Identifying Speaker Trim And Solar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
