64 11 906 Removing and installing/replacing ventilation temperature sensor (middle fresh-air grille)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove CENTRE FRESH AIR GRILLE

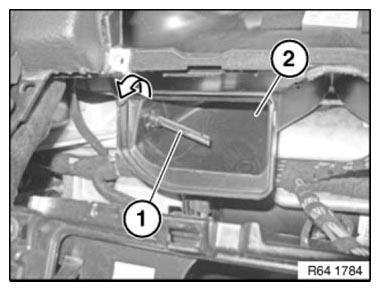

Turn temperature sensor (1) on plug socket in direction of arrow as far as it will go.
Feed temperature sensor (1) out of fresh-air duct (2).
Disconnect associated plug connection.
Installation:
Make sure temperature sensor (1) is correctly engaged in fresh-air duct (2).
