64 11 806 Removing and installing/replacing actuator drive for fresh-/recirculated air flap

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove RIGHT GLOVE BOX WITH HOUSING .

Release screw (1).

Fold down passenger compartment power distribution box (2).

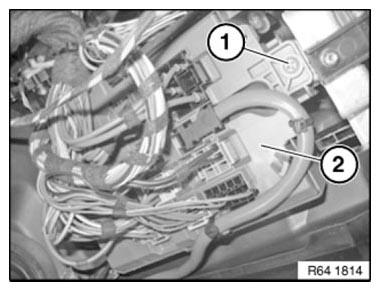

Fig 1: Identifying Passenger Compartment Power Distribution Box With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unfasten plug connection (2) and disconnect.

Remove actuator drive for fresh-air/recirculated air flap (3).

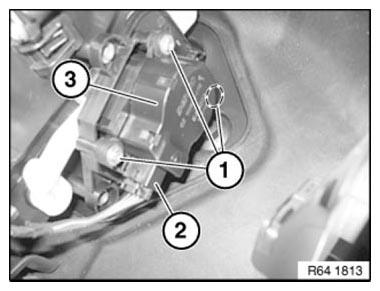

Fig 2: Identifying Actuator Drive For Fresh-Air/Recirculated Air Flap With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and air conditioning function
Flap motors
Re-address flap motors
