64 00.. Overview of heater - A/C system components

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

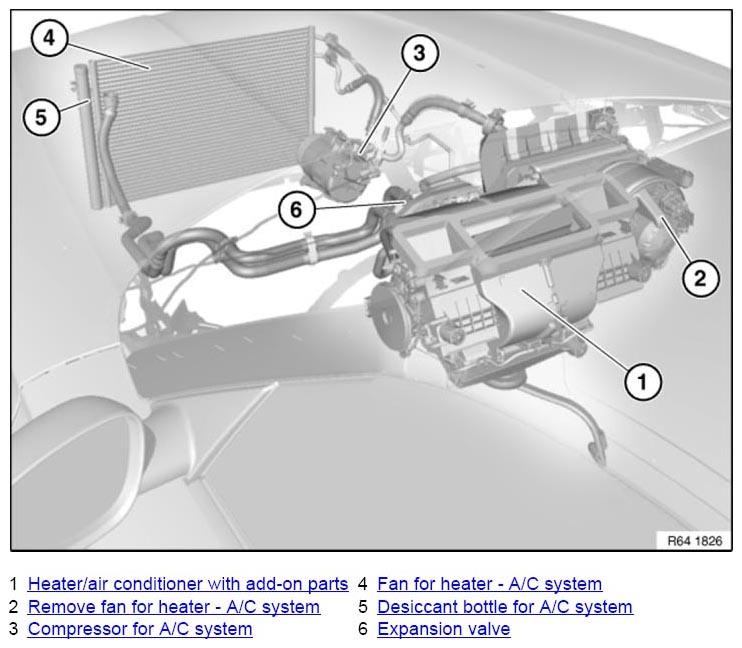

Fig 1: Identifying Heater - A/C System Components

Courtesy of BMW OF NORTH AMERICA, INC.

Heater/air conditioner with add-on parts
Remove fan for heater - A/C system
Compressor for A/C system
Fan for heater - A/C system
Desiccant bottle for A/C system
Expansion valve
