Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RIGHT FRONT SEAT
REMOVE FRONT RIGHT DOOR SILL COVER STRIP
Remove SIDE PANEL in right footwell

Fold carpet (1) to one side and expose DSC sensor (2).

Fig 1: Identifying Carpet And DSC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Vibration-sensitive component.
Implement screw connection correctly, otherwise there may be malfunctions in the DSC.

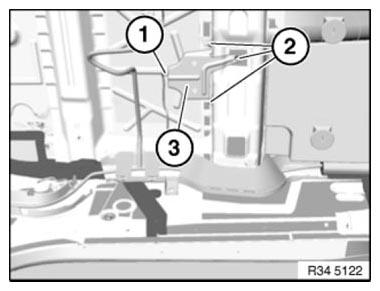

Unlock and disconnect plug (1).

Release screws (2) and remove DSC sensor (3) with holder.

Installation:

Tightening torque 34 51 3AZ .

Fig 2: Identifying DSC Sensor With Plug And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

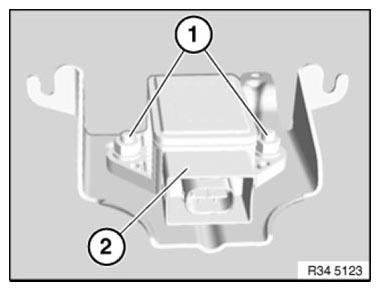

Release nuts (1) and detach DSC sensor (2) from holder.

Installation:

Tightening torque 34 51 2AZ .

Fig 3: Identifying DSC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out calibration/adjustment of DSC sensor.
