34 31... Overview of brake master cylinder/brake booster

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

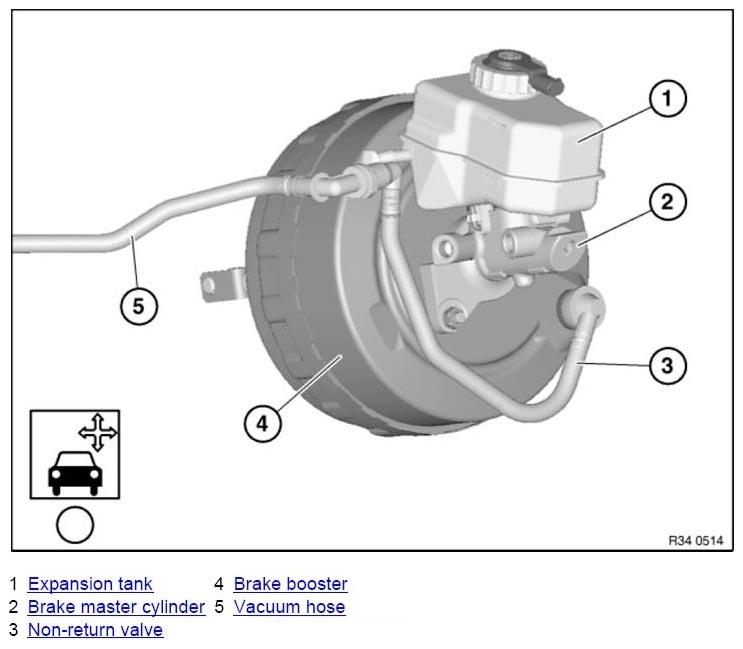

Fig 1: Overview Of Brake Master Cylinder / Brake Booster
G06908340Courtesy of BMW OF NORTH AMERICA, INC.
  1. Expansion tank
  2. Brake master cylinder
  3. Non-return valve
  4. Brake booster
  5. Vacuum hose
  6. Bleed braking system
