34 11... Overview of front brakes

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

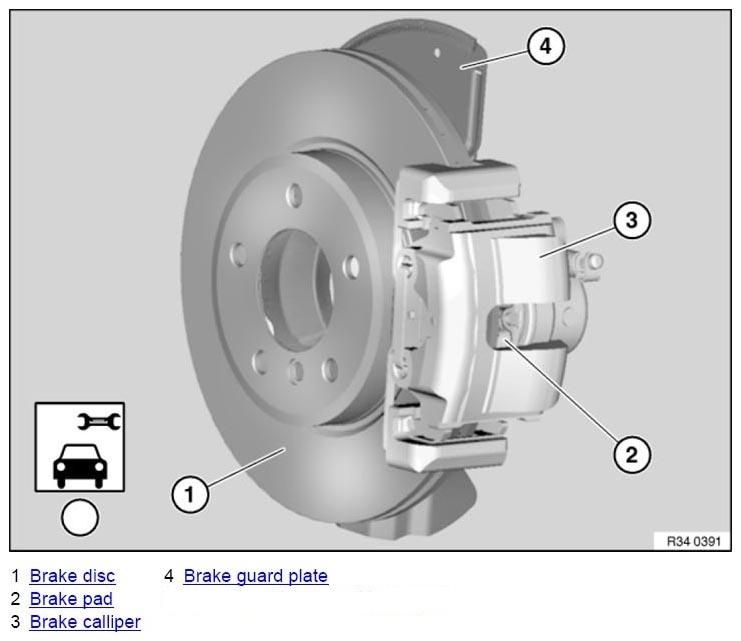

Fig 1: Overview Of Front Brakes
G06908293Courtesy of BMW OF NORTH AMERICA, INC.
  1. Brake disc
  2. Brake pad
  3. Brake caliper
  4. Brake guard plate
  5. Checking thickness of brake pad
