61 71 100 Removing and installing/replacing windscreen washer pump
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drain fluid reservoir for windscreen washer system.

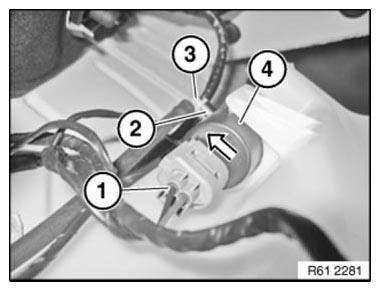

Unfasten plug connection (1) and disconnect.
Unlock clamp (2) and detach washing water line from windscreen washer pump (3).
Press windscreen washer pump (4) in direction of arrow.
Pull windscreen washer pump (4) up and out of fluid reservoir for windscreen washer system.
Installation:
Replace sealing ring and strainer in windscreen washer pump.
Coat sealing ring of windscreen washer pump with antiseize agent.
Fill fluid reservoir for windscreen washer system.
