61 35 954 Removing and installing/replacing interior aerial for comfort access system (version 2)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear cover (1) from center console (2) towards top.

Disconnect plug connection behind.

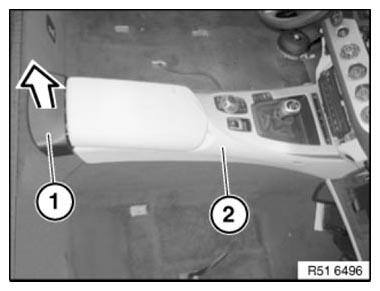

Fig 1: Removing Rear Cover From Centre Console

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and remove interior aerial for comfort access system (1) from holder (2).

Installation:

Make sure interior aerial for comfort access system (1) is correctly seated in designated holder (2).

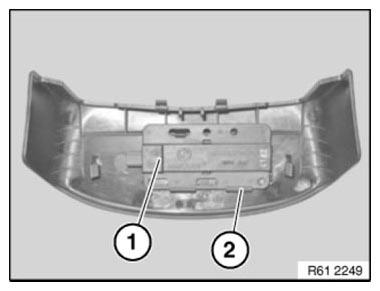

Fig 2: Identifying Comfort Access System Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.
