61 35 953 Removing and installing/replacing interior aerial for comfort access system (version 1)
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM FOR STORAGE COMPARTMENT

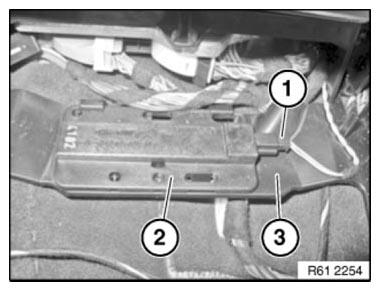

Disconnect plug connection (1).
Unlock and remove interior aerial for comfort access system (2) from holder (3).
Installation:
Make sure interior aerial for comfort access system (2) is correctly seated in designated holder (3).
