61 35 146 Removing and installing/replacing Convertible top module

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Remove RIGHT LOADING SILL END COVER

Unlock plug connections (1) and disconnect.

Pull Convertible top module (2) out of device holder (3).

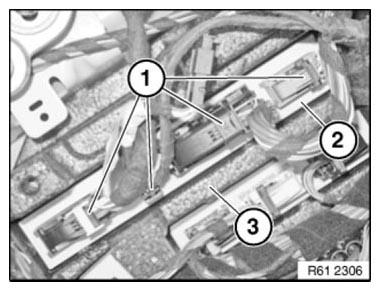

Fig 1: Identifying Plug Connection And Convertible Top Module Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
