61 35 115 Removing and installing/replacing footwell module

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD
Remove TRIM PANEL FOR PEDAL ASSEMBLY

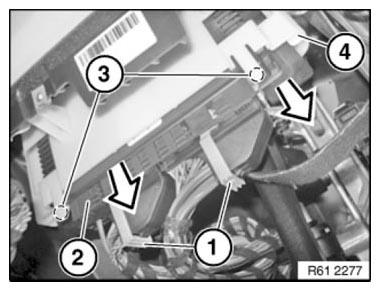

Unlock plug connections (1) and disconnect.

Unclip footwell module (2) at points (3).

Carefully pull footwell module (2) out of device holder (4) in direction of arrow.

Fig 1: Pulling Footwell Module Out Of Device Holder

Courtesy of BMW OF NORTH AMERICA, INC.

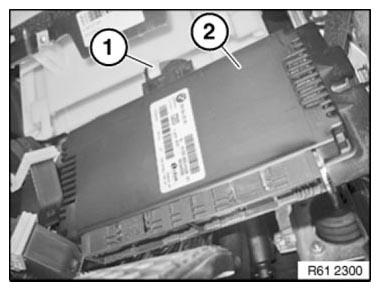

Unfasten plug connection (1) and disconnect.

Remove footwell module (2).

Fig 2: Identifying Plug Connection And Footwell Module

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding.
