61 35 015 Removing and installing (replacing) control unit for Car Access System

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD
Remove TRIM PANEL FOR PEDAL ASSEMBLY x

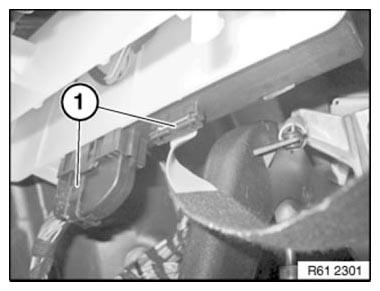

Unlock plug connections (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

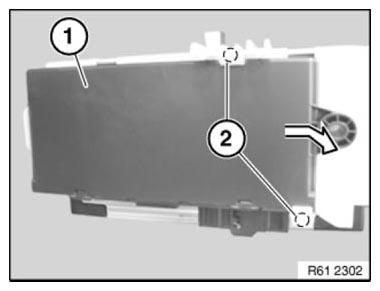

Unlock control unit for Car Access System (1) at points (2).

Remove control unit for Car Access System (1) in direction of arrow.

Fig 2: Removing Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

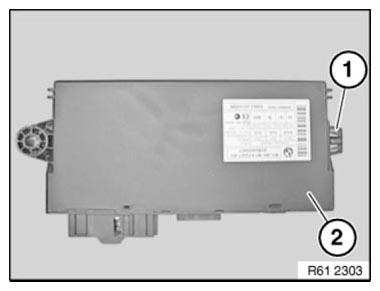

Feed guide (1) of control unit for Car Access System (2) correctly into associated mounting.

Fig 3: Identifying Guide Of Control Unit For Car Access System

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
