61 34... Removing and installing/replacing 12-V socket in the front storage compartment

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

REMOVE COVER FOR FRONT STORAGE COMPARTMENT

Press together tabs in direction of arrow and remove the cover (1) forwards.

Expose cable at positions (3) and (5).

Carefully unclip lighting from storage compartment (2) and socket (4).

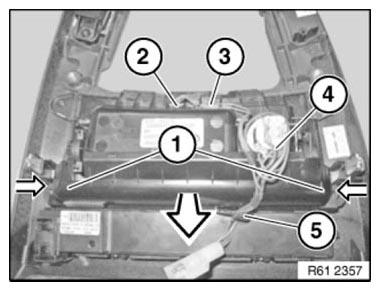

Fig 1: Pressing Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the 12-V socket with special tool 61 0 250 from the storage compartment housing until the connector is below on the light ring.

Fig 2: Pulling 12V Socket Using Special Tool (61 0 250)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock tabs with suitable tool in direction of arrow and release light ring (1).

Pull out 12-V socket completely, including light ring and cable.

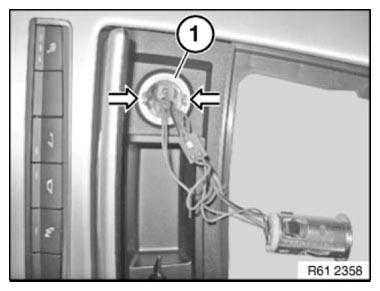

Fig 3: Releasing Light Ring

Courtesy of BMW OF NORTH AMERICA, INC.
