61 31 492 Replacing level switch for windscreen washer system

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Unlock retaining lugs (1).

Remove fluid tank for windscreen washer system (2).

Fig 1: Identifying Windscreen Washer System With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Turn level switch for windscreen washer system (2) in direction of arrow through approx. 90° and pull out downwards.

Installation:

Make sure level switch for windscreen washer system (2) is correctly seated.

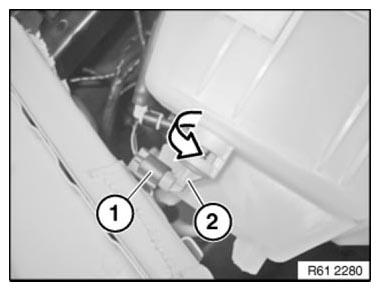

Fig 2: Turning Level Switch For Windscreen Washer System

Courtesy of BMW OF NORTH AMERICA, INC.
