61 31 287 Removing and installing/replacing driving dynamics switch

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FOR STORAGE COMPARTMENT

Release screws (1).

Remove driving dynamics switch (2).

Installation:

Make sure driving dynamics switch (2) is correctly seated.

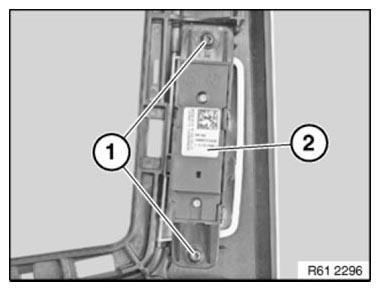

Fig 1: Identifying Driving Dynamics Switch With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
