61 31 172 Removing and installing/replacing switch for electromechanical parking brake
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- DISCONNECT NEGATIVE BATTERY LEAD (to avoid fault memory entries)
- Remove TRIM FOR STORAGE TRAY

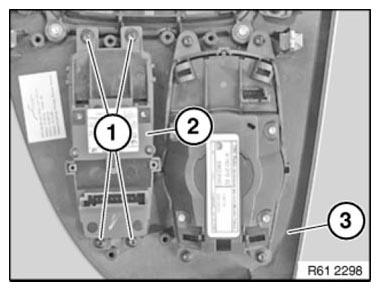

Release screws (1).
Remove switch for electromechanical parking brake (2) from trim for storage compartment (3).
