61 31 118 Replacing front passenger power window switch

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Carefully lever out rocker switch (1) in area (2) with special tool 00 9 323.

Feed rocker switch (1) out of door trim panel (3).

Unlock associated plug connection and disconnect.

remove rocker switch (1).

Installation:

Make sure rocker switch (1) is exactly seated.

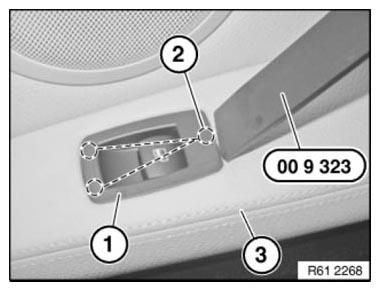

Fig 1: Removing Rocker Switch On Area Using Special Tool 00 9 323
G06911484Courtesy of BMW OF NORTH AMERICA, INC.
