61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Raise rocker switch (1) with special tool 00 9 317.

Feed rocker switch (1) out of door trim panel (2).

Unlock associated plug connection and disconnect.

Installation:

Make sure rocker switch (1) is correctly seated.

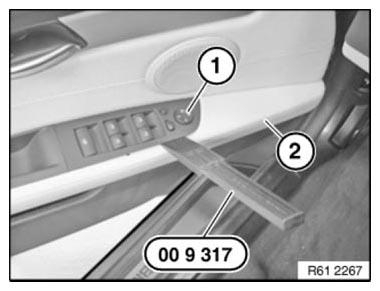

Fig 1: Lifting Rocker Switch Using Special Tool 00 9 317
G06911468Courtesy of BMW OF NORTH AMERICA, INC.
