61 31 083 Removing and installing/replacing switch for unlocking rear lid
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

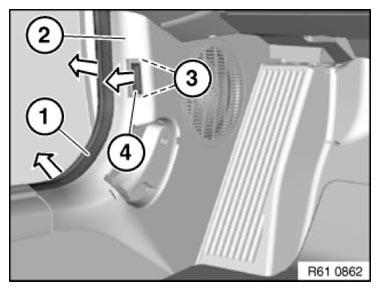

To unclip switch for unlocking rear lid (4), partially detach mucket (1).
Grip from outside behind footwell side trim panel on A-pillar on left (2).
Grip from outside behind footwell side trim panel on A-pillar on left (2).
Press retaining lugs (3) together and feed switch for unlocking rear lid (4) out of footwell side trim panel on A-pillar on left (2).
If necessary, remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR, LEFT .
Disconnect associated plug connection and remove switch for unlocking rear lid (4).
