61 31 062 Removing and installing/replacing button for steering wheel heating

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Lever out button for steering wheel heating (1) with suitable tool in direction of arrow.

Disconnect plug connection behind and remove button for steering wheel heating (1).

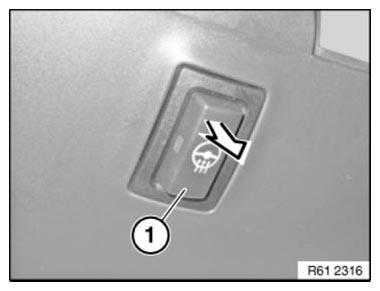

Fig 1: Removing Button For Steering Wheel Heating
G06911462Courtesy of BMW OF NORTH AMERICA, INC.
