61 31 038 Removing and installing (replacing) switch for passenger airbag deactivation

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with SAFETY REGULATIONS for handling airbag modules and pyrotechnical belt pretensioners.
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks

Clamp off BATTERY NEGATIVE LEAD

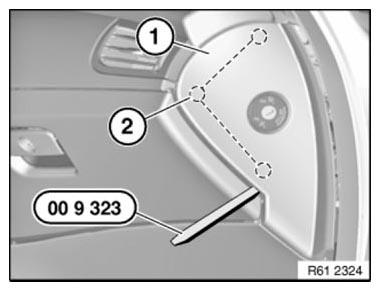

Carefully lever out side cover (1) with special tool 00 9 323 at points (2).

Fig 1: Removing Side Cover Using Special Tool 00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock catches (4) in direction of arrow.

Feed switch for passenger airbag deactivation (2) out of side cover (3).

Fig 2: Pressing Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure switch for passenger airbag deactivation (2) is correctly seated in side cover (3).
