61 14 010 Removing and installing/replacing distribution box
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INSTRUCTIONS
for handling vehicle battery.
Necessary preliminary tasks
- Clamp off BATTERY NEGATIVE LEAD

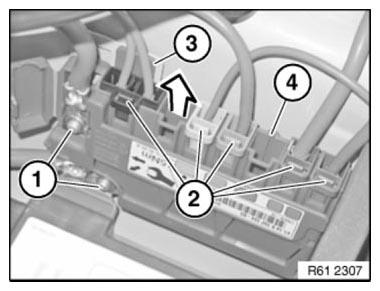

Unscrew nuts (1).
Tightening torque 61 12 1AZ .
Unlock plug connections (2) and disconnect.
Unlock retaining clip (3).
Remove distribution box (4) in direction of arrow.
Installation:
Make sure distribution box (4) is correctly seated.
