61 13 050 Removing and installing/replacing fuse box in passenger compartment

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.

Necessary preliminary tasks

Remove JUNCTION BOX ELECTRONICS .

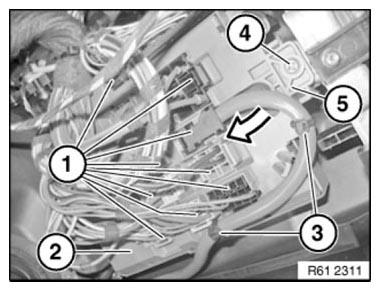

Unlock plug connections (1) on passenger compartment fuse box (2) and disconnect.

Release cable tie (3).

Release screw (4).

Fold down passenger compartment fuse box (5) in direction of arrow.

Fig 1: Removing Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

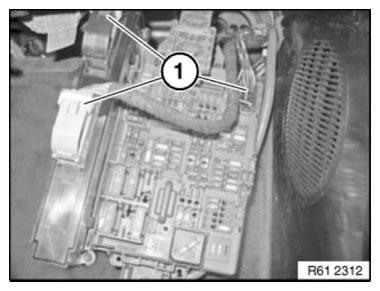

Unlock plug connections (1) and disconnect.

Fig 2: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

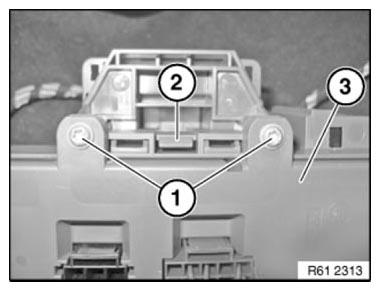

Release screws (1).

Unlock retainer (2) and remove passenger compartment fuse box (3).

Fig 3: Identifying Retainer And Passenger Compartment Fuse Box With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove JUNCTION BOX ELECTRONICS .

Remove fuses.
