61 12 200 Replacing wiring harness in left or right front door

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Close front side window completely
Remove FRONT DOOR TRIM
Remove SOUND INSULATION IN FRONT DOOR

Release screws (1).

Disconnect plug connections (2).

Cut open cable fastener (3).

Remove speaker holder (4).

Installation:

Make sure door wiring harness is correctly laid.

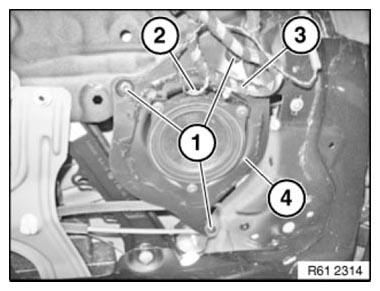

Fig 1: Identifying Speaker Holder, Cable Fastener And Plug Connection With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable tie (1).

Unfasten plug connection (2) and disconnect.

Installation:

Replace cable tie (1).

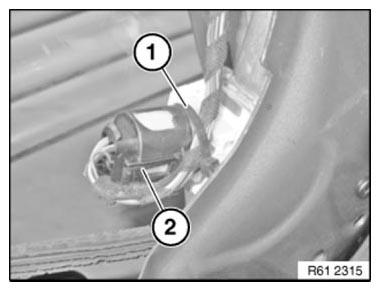

Fig 2: Identifying Plug Connection And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Front side panel shown removed for purposes of clarity.

Release screw (1), fold door wiring harness plug on A-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.

Pull rubber grommet (3) in direction of arrow out of front door (4).

Feed out door wiring harness towards front to A-pillar and remove.

Fig 3: Pulling Rubber Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
