61 12 004 Replacing battery positive lead (from luggage compartment connector to engine bulkhead connector)

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety instructions See 6100... NOTES ON HANDLING WIRING HARNESSES AND CABLES or 6120... (SAFETY) INFORMATION ON AGM BATTERY for handling vehicle battery.
Read and comply with notes on HANDLING WIRING HARNESSES and cables.

Necessary preliminary tasks

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL
Disconnect BATTERY NEGATIVE LEAD

Release screw (1).

Tightening torque 61 12 3AZ .

Unfasten plug connection (2) and disconnect.

Fig 1: Identifying Plug Connection With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

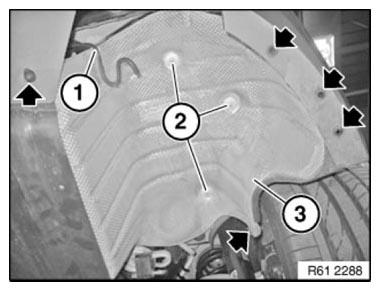

Feed out vacuum hose (1).

Release nuts (2).

Release all screws.

Remove heat shield (3) towards bottom.

Fig 2: Locating Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

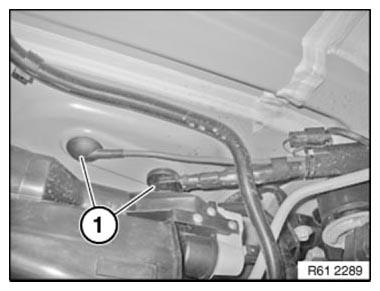

Feed out battery positive leads (1) towards bottom.

Fig 3: Identifying Battery Positive Leads

Courtesy of BMW OF NORTH AMERICA, INC.

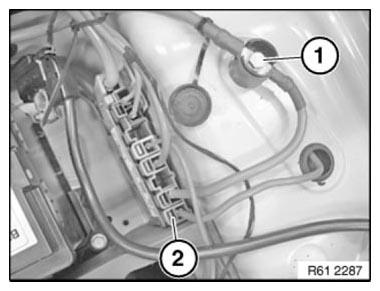

Unscrew nuts (1).

Release cable tie and remove cover (2).

Fig 4: Identifying Cover With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

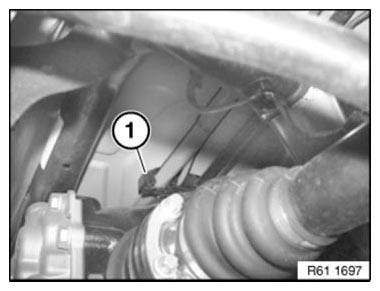

Release cable holder (1).

Fig 5: Identifying Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

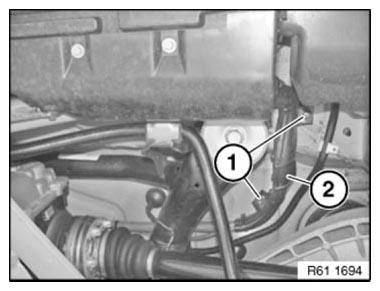

Unscrew nuts (1).

Remove duct cover (2).

Fig 6: Identifying Duct Cover With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable holder (1).

Fig 7: Identifying Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

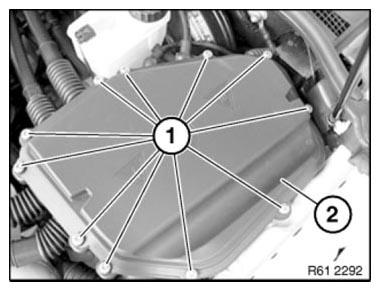

Release screws (1).

Remove electronics box cover (2).

Fig 8: Identifying Electronics Box Cover With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

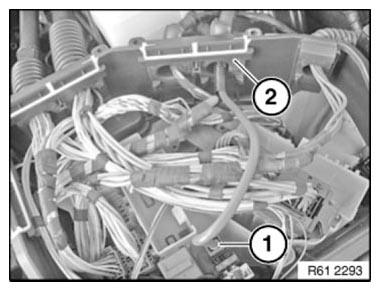

Unfasten plug connection (1) and disconnect.

Remove battery positive lead with wiring harness grommet (2) from electronics box.

Installation:

Make sure wiring harness grommets (2) are correctly seated in electronics box.

Fig 9: Identifying Plug Connection And Wiring Harness Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover cap (1) from B+ terminal.

Fig 10: Identifying Cover Cap Of B+ Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

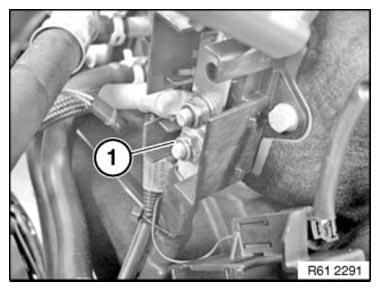

Slacken nut (1).

Tightening torque 61 12 2AZ .

Remove battery positive lead in downward direction.

Fig 11: Identifying Battery Positive Lead Nut

Courtesy of BMW OF NORTH AMERICA, INC.
