32 31 102 Replacing steering spindle sleeve
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Release STEERING SPINDLE from steering column (in engine compartment)
- Put steering column in position "top" and "expanded"
- Remove PANEL FOR PEDAL ASSEMBLY

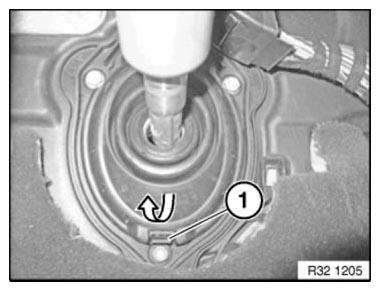

Press release (1) downwards and remove sleeve.
Installation:
First feed sleeve at top into guide and clip into place at bottom.
Sleeve must snap audibly into place!
After installation
- Carry out STEERING ANGLE SENSOR ADJUSTMENT
