33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

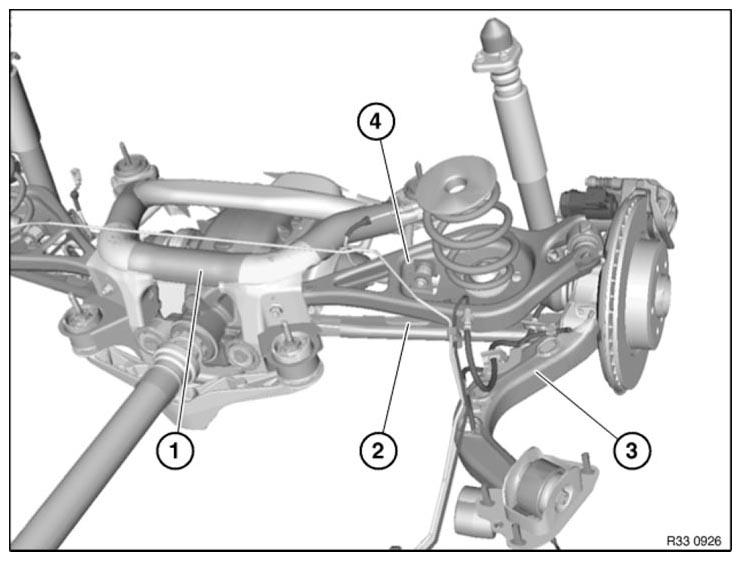

Fig 1: Identifying Rear Axle + Steering Components

Courtesy of BMW OF NORTH AMERICA, INC.

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:

Release of following screw/bolt connections:
- Bearing block to trailing arm/body
- Upper control arm to trailing arm
- Lower control arm to trailing arm
Replacement of following parts:
1. Rear axle carrier
2. Lower control arm
3. Trailing arm/rubber mount/bearing block
4. Upper control arm
