32 00... General chassis and suspension definitions

WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

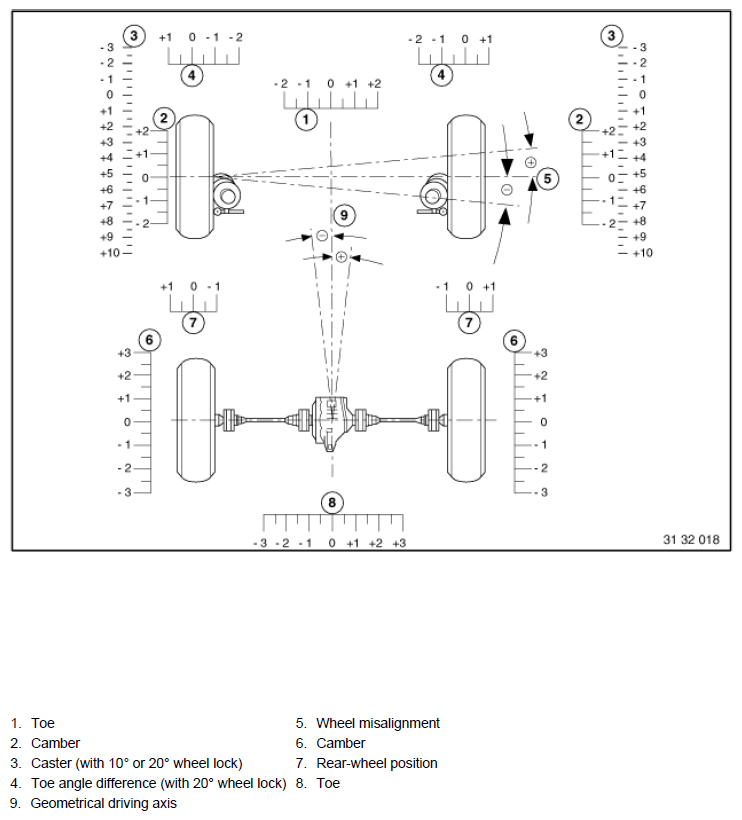

Fig 1: Chassis And Suspension Angles Diagram
G06908220Courtesy of BMW OF NORTH AMERICA, INC.
  1. Toe
  2. Camber
  3. Caster (with 10° or 20° wheel lock)
  4. Toe angle difference (with 20° wheel lock)
  5. Wheel misalignment
  6. Camber
  7. Rear-wheel position
  8. Toe
  9. Geometrical driving axis
