31 00... Front axle + steering: wheel/chassis alignment check must be carried out after the following work
WARNING: This page is about a different car, the 2013 BMW Z4, 2012 BMW Z4, 2011 BMW Z4, 2010 BMW Z4, and 2009 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

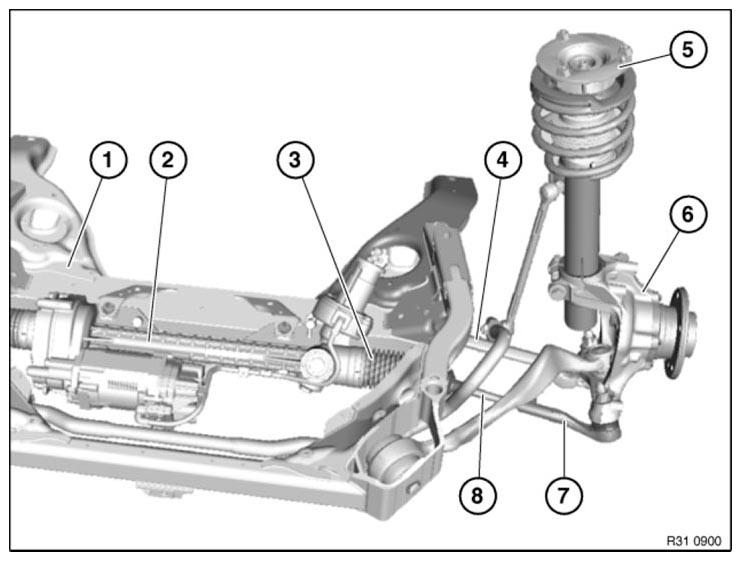

A WHEEL/CHASSIS ALIGNMENT CHECK must be carried out after the following work:
- Release of following screw/bolt connections:
- Steering gear to front axle carrier
- Control arm to front axle carrier
- Support bearing to body (if centering pin is missing)
- Tie rod end to tie rod
- Replacement of following parts:
- Front axle carrier
- Steering gear
- Gaiter (if the tie rod end has to be screwed off)
- Control arm
- Support bearing (only if centering pin is missing)
- Swivel bearing
- Tie rod end
- Tie rod
