Airbag plug connection on gas generator/airbag module is straight (3 versions)

Version 1:

Press locking/unlocking plate (1) at edge (4).

Locking/unlocking plate (1) snaps upwards at opposite edge (3) and releases detent lug (2).

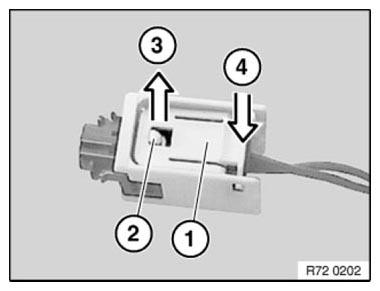

Fig 1: Pressing Locking/Unlocking Plate At Edge

Courtesy of BMW OF NORTH AMERICA, INC.

The airbag plug connection is unlocked and can now be detached from the gas generator/airbag module.

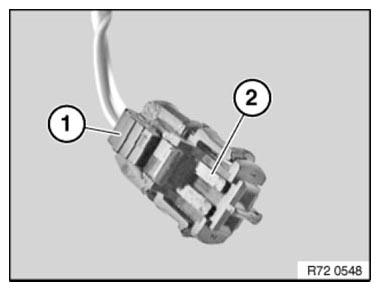

Fig 2: Identifying Airbag Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After attaching airbag plug connection to gas generator/airbag module, check whether detent lug (2) is visible in opening of locking/unlocking plate (1).

Only if the detent lug (2) is visible will the airbag plug connection gas generator/airbag module be correctly engaged.

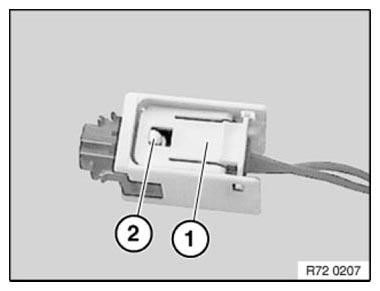

Fig 3: Identifying Detent Lug And Locking/Unlocking Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

Press locking/unlocking plate (1) on edge (3) and pull plug (2) out of plug housing (4).

Installation note:

Only if the detent lug is visible in opening (5) will the gas generator/airbag module plug connection be correctly engaged.

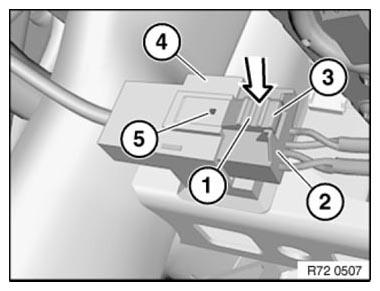

Fig 4: Pressing Locking/Unlocking Plate On Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Version 3:

Press lock button (1) and pull out plug (2) up to initial engagement position.

Detach plug (2) from firing pellet.

Installation note:

Insert plug connection in initial engagement position in gas generator/airbag module and engage in final engagement position.

Fig 5: Identifying Lock Button And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

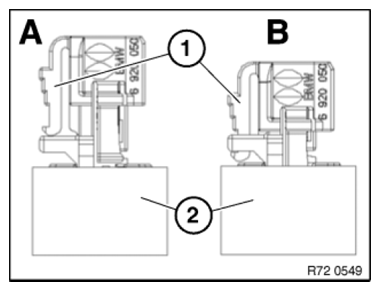

Illustration of version 3 with gas generator:

1. Initial engagement position
2. Final engagement position

1. Lock button
2. Gas generator

Fig 6: Identifying Lock Button And Gas Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Version 4 - Crash-active head restraint:

Press locking clip at edge and disconnect plug (1).

Installation note:

Check for correct engagement.

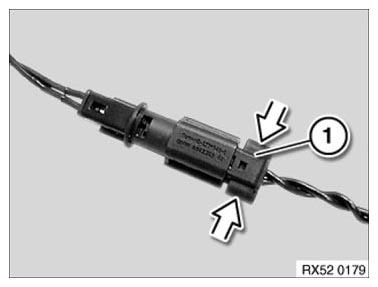

Fig 7: Pressing Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.
