52 24... Removing and installing/replacing all guide sleeves for rear head restraints
WARNING: This page does not describe the selected car, but rather 31 other vehicles, including the 2015 BMW Alpina B7L, 2015 BMW Alpina B7, 2015 BMW 750i, 2015 BMW 750Li, and 2015 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary work:
- Remove head restraint. See 5224390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .

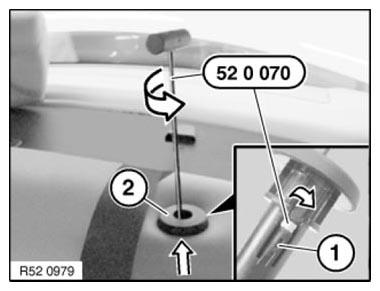

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.
Feed release tongue of special tool into rear gap on retaining lug (1).
Turn tool to release sleeve (2) and pull out by lifting upwards.
Installation:
Replace faulty sleeves.
